The following two images are redrawn from poor quality original scans but are
checked thoroughly and conformity is believed to be 100.0% informationwise.
However, should you find any errors, please let me know.

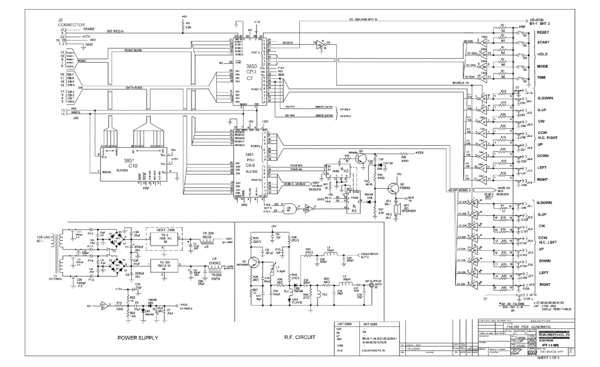

FVE100 Schematic page 1.
Click to view full resolution

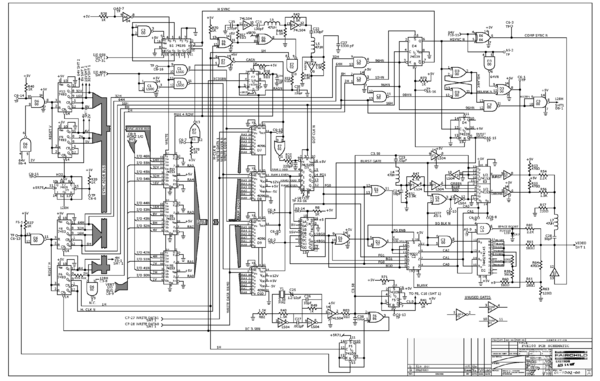

FVE100 Schematic page 2.
Click to view full resolution


Luxor TV Computer Game 1909574

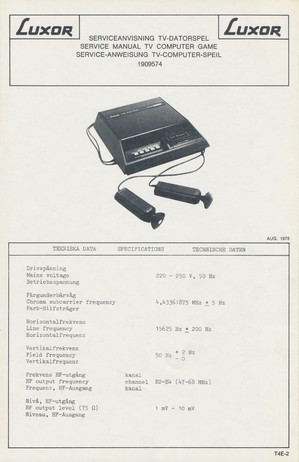

Luxor Service Manual TV Computer Game page 2.
Click to view full resolution
Luxor Service Manual TV Computer Game page 3.
Click to view full resolution

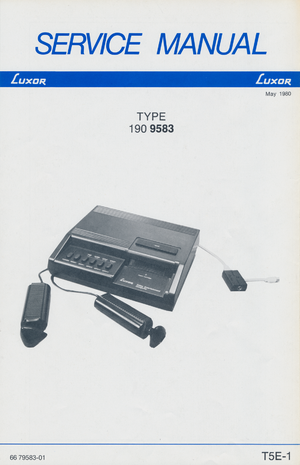

Luxor Service Manual TV Computer Game pdf.
Click to view full pdf


The much simpler SABA Videoplay 2 schematic with it's VLSI circuits

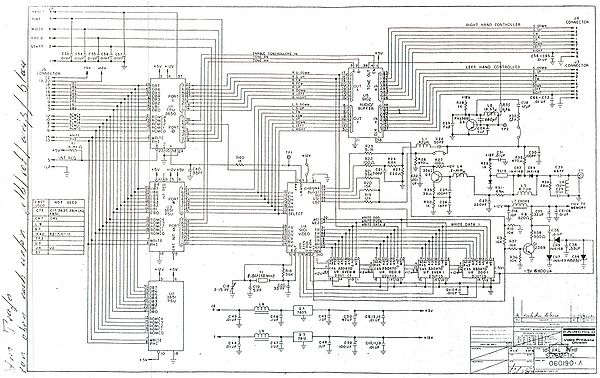

SABA VideoPlay 2 Schematic.
Click to view full resolution
